SPECIFICATIONS
Material :Aluminum
LED: Citizen/Cree/Philips/Sanan
LED Driver : Philips/Osram/HEP/Lifud
Dimmable : Triac/0-10v/DALI/ RF Dimming
Diffuser: Optical Reflector , efficiency≥90%

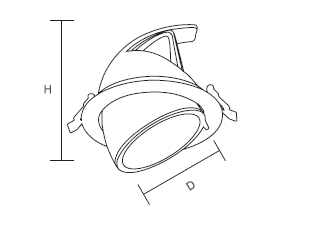

| Model No.: | Power | CRI | CCT | Lumen EEF | Lumen(lm) | Beam Angle | Input voltage | Size(mm) | Cut-out(mm) |
| EL-C02A010 | 10W | ≥80 | 3000k/4000K/5000K | 90lm/w | 900lm | 15°/24°/36° | 220-240v 50-60Hz | 90x60 | 75 |
| EL-C02A018 | 18W | ≥80 | 3000k/4000K/5000K | 90lm/w | 1620lm | 15°/24°/36° | 220-240v 50-60Hz | 102x80 | 95 |
| EL-C02A030 | 30W | ≥80 | 3000k/4000K/5000K | 90lm/w | 2700lm | 15°/24°/36° | 220-240v 50-60Hz | 140x115 | 125 |
| EL-C02A040 | 40W | ≥80 | 3000k/4000K/5000K | 90lm/w | 3600lm | 15°/24°/36° | 220-240v 50-60Hz | 160x135 | 145 |
| EL-C02A060 | 60W | ≥80 | 3000k/4000K/5000K | 90lm/w | 5400lm | 15°/24°/36° | 220-240v 50-60Hz | 190x150 | 175 |
Application:
Commercial Area ,Clothing stores, luxury stores, museums, supermarket chains, Hotel ,auto 4S shops, high-end office space, etc.
